Aisiboxer 03-DBE

AISIBOXER 03-DBE is the new evolution of the Aisiboxer line of air-operated double diaphragm volumetric pumps.

DBE stands for Driven By Experience: every design choice comes from years of hygienic applications in the field and from extensive testing by our technical department.

Made of mechanically polished AISI 316L with a surface finish below 0.8 μm, the 03-DBE is designed for high-viscosity fluids and fluids containing suspended solids in the food, pharmaceutical, cosmetics and hair care industries.

Its greatest strength is suction: up to 5.5 m dry and 9.5 m with primed pump, together with a flow rate of up to 400 l/min and the ability to handle solids up to 30 mm.

AISIBOXER 03-DBEEccentric BallsDownload
AISIBOXER 03-DBEcheck valvesDownload
SANIBOXER 03-DBEPharmaceutical versionDownload
TECHNICAL DATA
  • Suction / delivery connectionsClamp BS 4825 – 2"
  • Air fitting1/2" f BSPP
  • Max flow rate400 l/min
  • Max suction from negative head – dry running*5.5 m
  • Max suction from negative head – with primed pump9.5 m
  • Max diameter of suspended solids (eccentric balls)10 mm
  • Max diameter of suspended solids (check valves)30 mm
  • Max air supply pressure8 bar
  • Max head*80 m
  • Process temperature3 °C – 95 °C (CIP / COP / SIP up to 130 °C)
* The value depends on the pump's configuration.
THE 03-DBE ADVANTAGE

More suction power, exactly where your process needs it most

At the end of our extensive testing programme, our technical department confirmed that suction is the greatest advantage of the new AISIBOXER 03-DBE.

5.5 m
DRY SUCTION

With up to 5.5 m dry suction and 9.5 m with primed pump, it lifts the product from tanks, drums and containers below the pump, even with viscous fluids. Start-up is easier and the pump can be installed more freely on any line.

Request information
Driven by experience in the field, designed for what our customers will need next.
Product Manager
TECHNICAL SPECIFICATIONS

Designed for hygiene and continuity

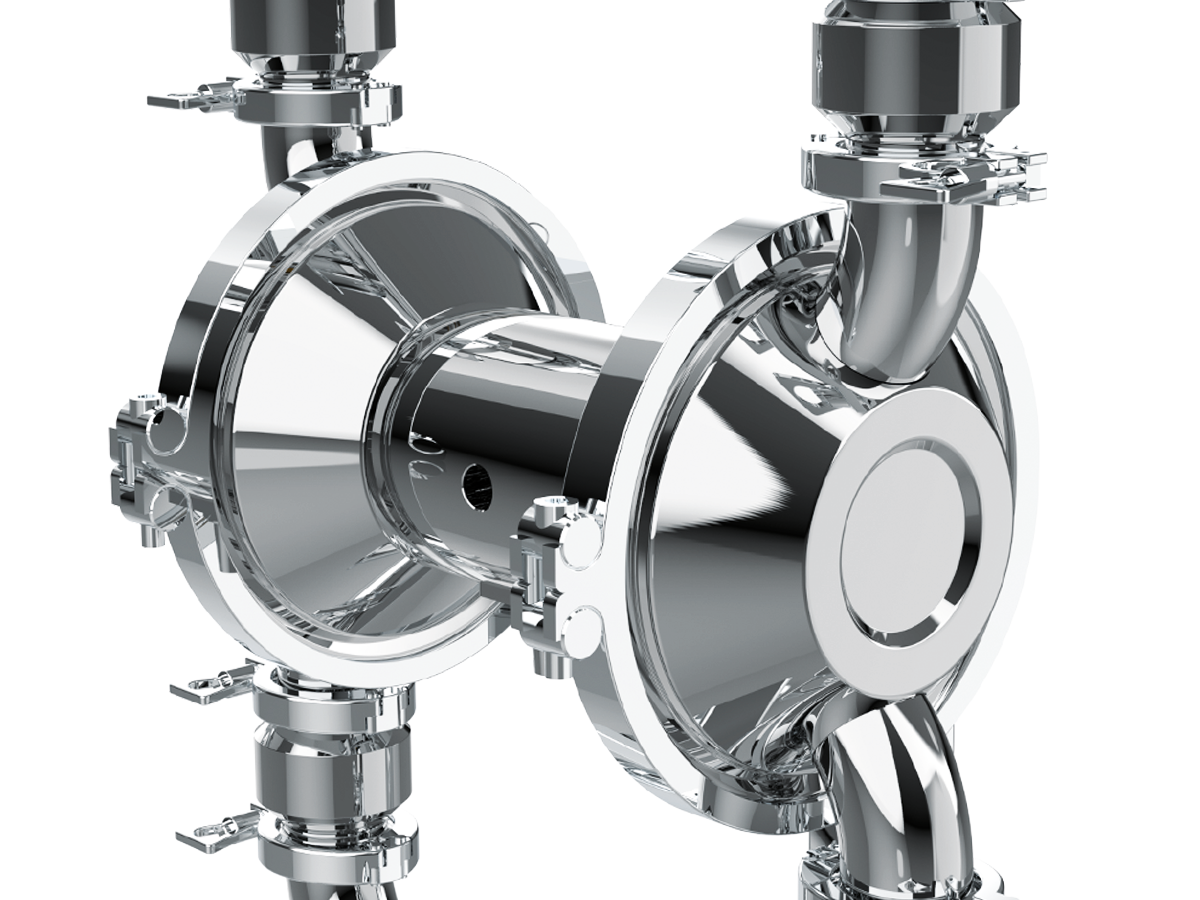

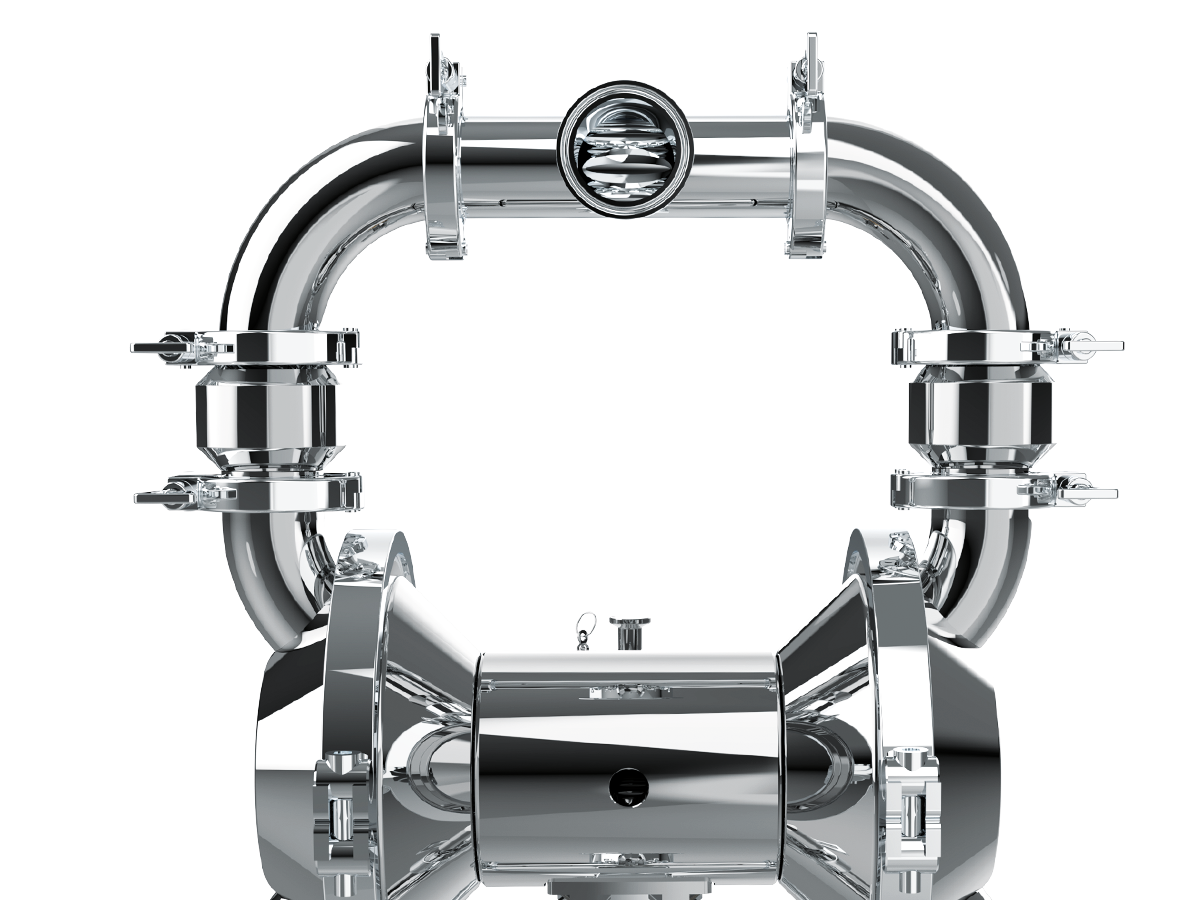

The 03-DBE combines a one-piece moulded central block, a patented coaxial anti-stall air exchanger and special diaphragms with an anti-deposit surface. Eccentric ball valves prevent the balls from locking, and check valves handle solids up to 30 mm. Rotating connections make installation easier.

Request information
VIDEOAISIBOXER 03-DBE in action

Discover the new AISIBOXER 03-DBE in action and see its suction performance at work, the key advantage confirmed by our technical department at the end of testing.

SOLUTIONS

Explore our full range

From food and beverage to pharmaceutical, cosmetics and hair care, Debem Hygienic Solutions offers a complete range of hygienic pumps designed to meet the needs of every process.

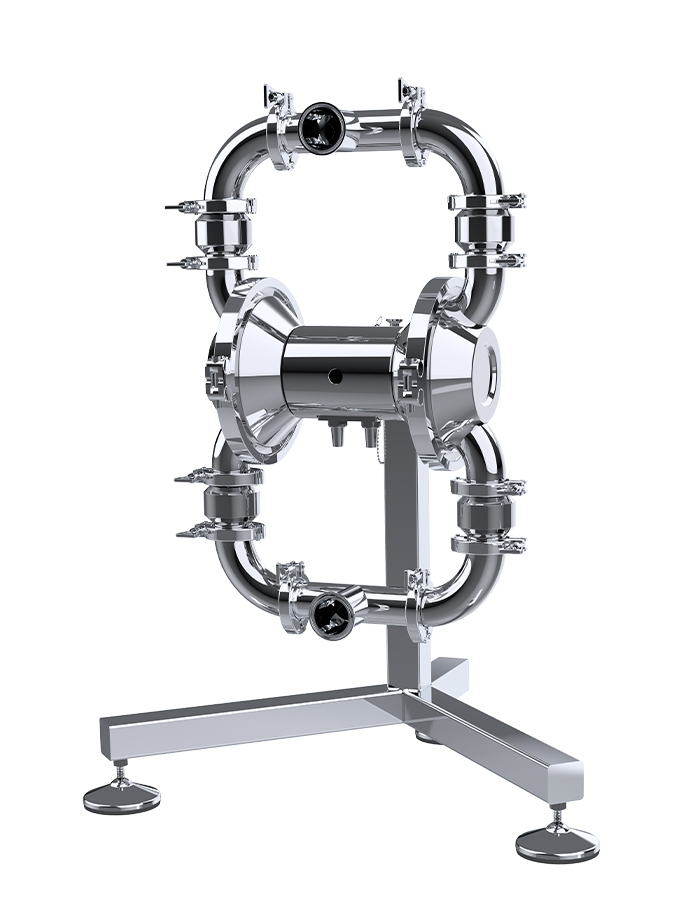

Eccentric Balls
AISIBOXER 03-DBEDownload

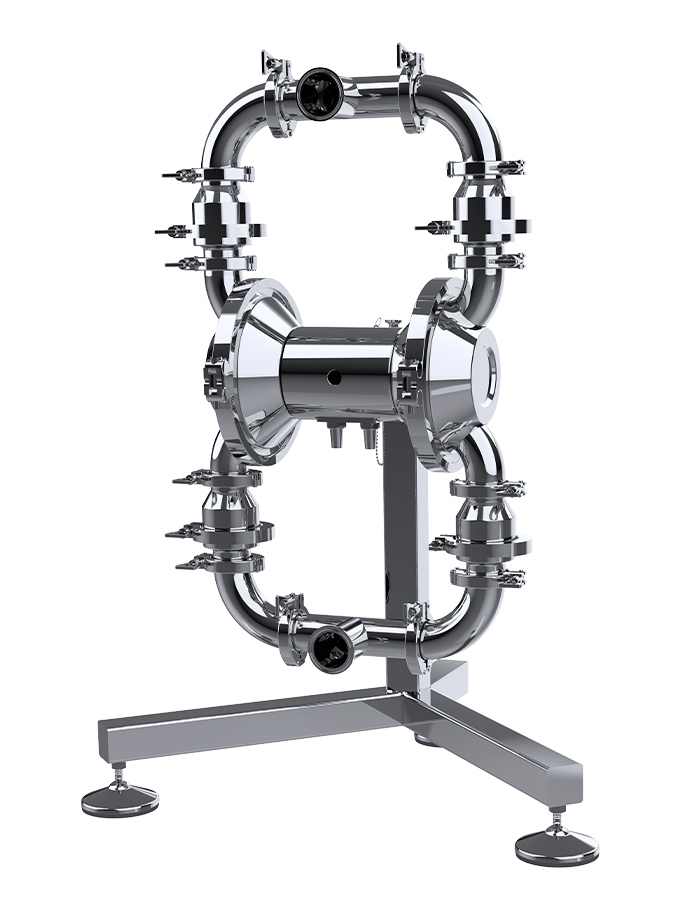

Check Valves
AISIBOXER 03-DBEDownload

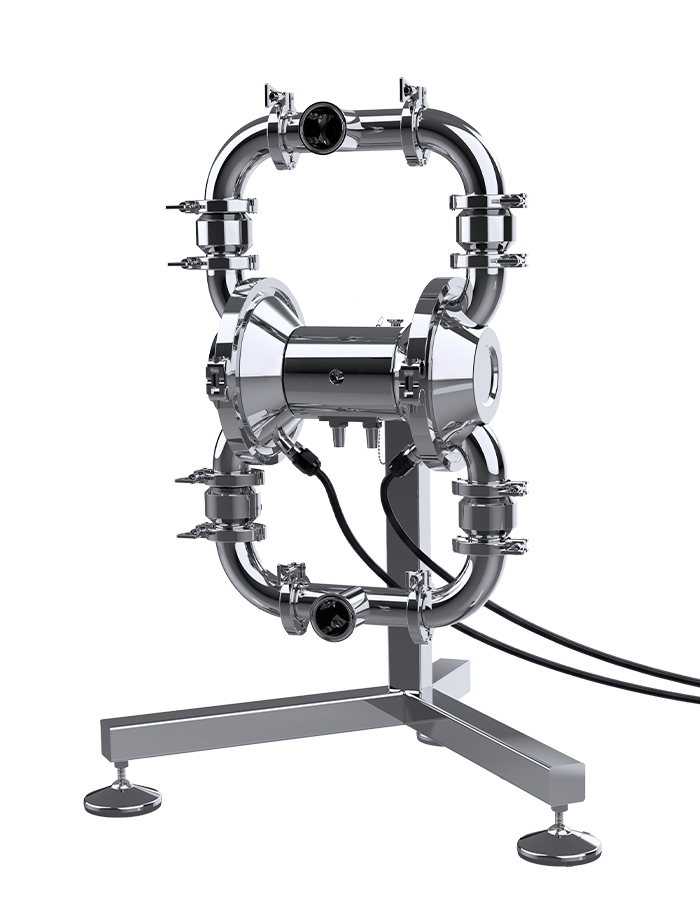

Pharmaceutical Line
Saniboxer 03-DBEDownload
CONTACT USIs the AISIBOXER 03-DBE right for your process?

Fill out the contact form and our technical team will get back to you with all the information you need, from technical data to the best configuration for your application
